| Product Information |

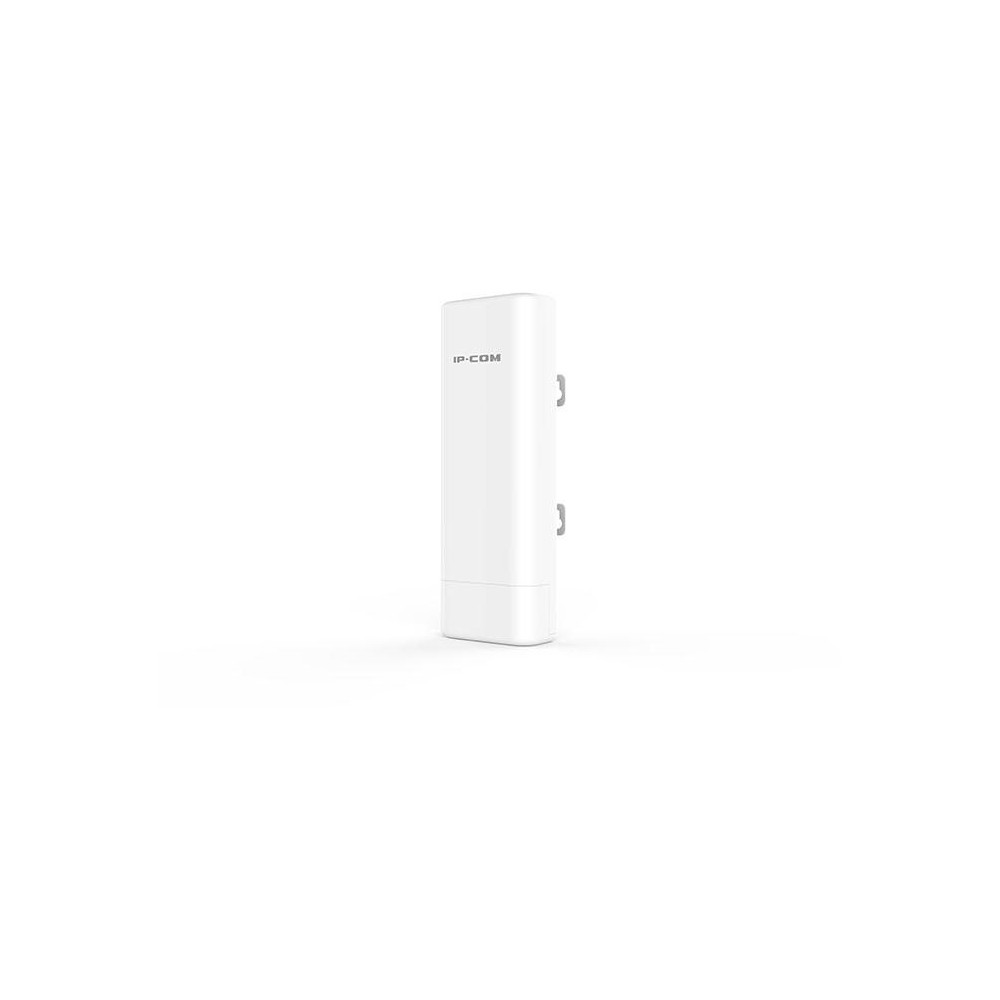

| Model | CPE12(MS-Loco5AC) |
| Dimensions | 193*109*61mm |
| Deployment | Pole/Wall Mount |
| Application Scenarios | PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance |
| Hardware Features |
| Frequency Range | 5GHz |
| Compliant Standards | IEEE 802.11a/n/ac |
| Private TDMA Protocol | ipMAX |
| Maximum Wireless Rate | 867Mbps |
| Interfaces | 2*10/100/1000Mbps Port |
| Antennas Gain | 12dBi |
| Antenna Beamwidth | Horizontal 30° Vertical 30° Elevation 30° |
| Reset Button | 1 |
| Power Consumption | 6.5W |
| Waterproof Level | IP65 |
| LED indicator | Power, LAN1, LAN2, LAN3, LED1, LED2, LED3 |
| Power Method | PoE 802.3af/at | 12V1A Passive PoE | 12V 1A DC |
| Lightning Protection | 6000V |
| Passive PoE | Passive power over ethernet via PoE/LAN (+4, 5pins; -7, 8pins ) up to 60 meters | Voltage range 9-24V DC |
| Receive sensitivity | 11a 6Mbps -90dBm±1.5dBm | 11n MCS0 HT20 -70dBm±1.5dBm | 11n MCS7 HT20 -70dBm±1.5dBm | 11ac MCS9 HT80 -59dBm±1.5dBm |
| | |
| | |
| Software Features |
| Operating mode | AP/Station/WISP/ Repeater/Router |
| Enable/Disable Wireless Radio | Support |
| SSID Hidden | Support |
| Wireless Client isolation | Support |
| SSID Isolation | Support |
| Channel Bandwidth | 20/40/80MHz |
| Client Limitation For SSID | Support |
| Wireless Access Control | Support |
| Weak Signal Client Limitation | Support |
| Transmission Power | Adjustable power by 1dBm |
| WMM Capable | Support |
| APSD Capable | Support |
| Wireless Security | WPA-PSK, WPA2-PSK, Mix WPA/WPA2-PSK |
| Transparent Bridge | Support |
| VLAN Tagging for SSID | Support |
| DHCP Server | Support |
| VPN Pass-Through | PPTP, L2TP |
| Remote Web access | Support |
| Schedule Reboot | Support |
| Page Timeout | Support |
| Ping Watchdog | Support |
| Dyndns | noip, dyndns.org |
| Network Diagnoses | Ping, Traceroute, Signal Scan |
| Time&Date Setting | Support |
| Firmware upgrade | Support |
| Backup/Restore Configuration | Support |
| Username Managerment | Support |
| System Log | Support |
| Managed By Controller | PC Software -- CPE Controller |
| Others |
| Operating Temperature | -30℃ ~ 60℃ |
| Storage Temperature | -40℃ ~ 70℃ |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 10%~90% non-condensing |
| Default login IP | 192.168.2.1/192.168.2.2 |
| Default Login Username | admin |
| Default Login Password | admin |
| Certifications | FCC/CE/RoHS |
|
