5G01

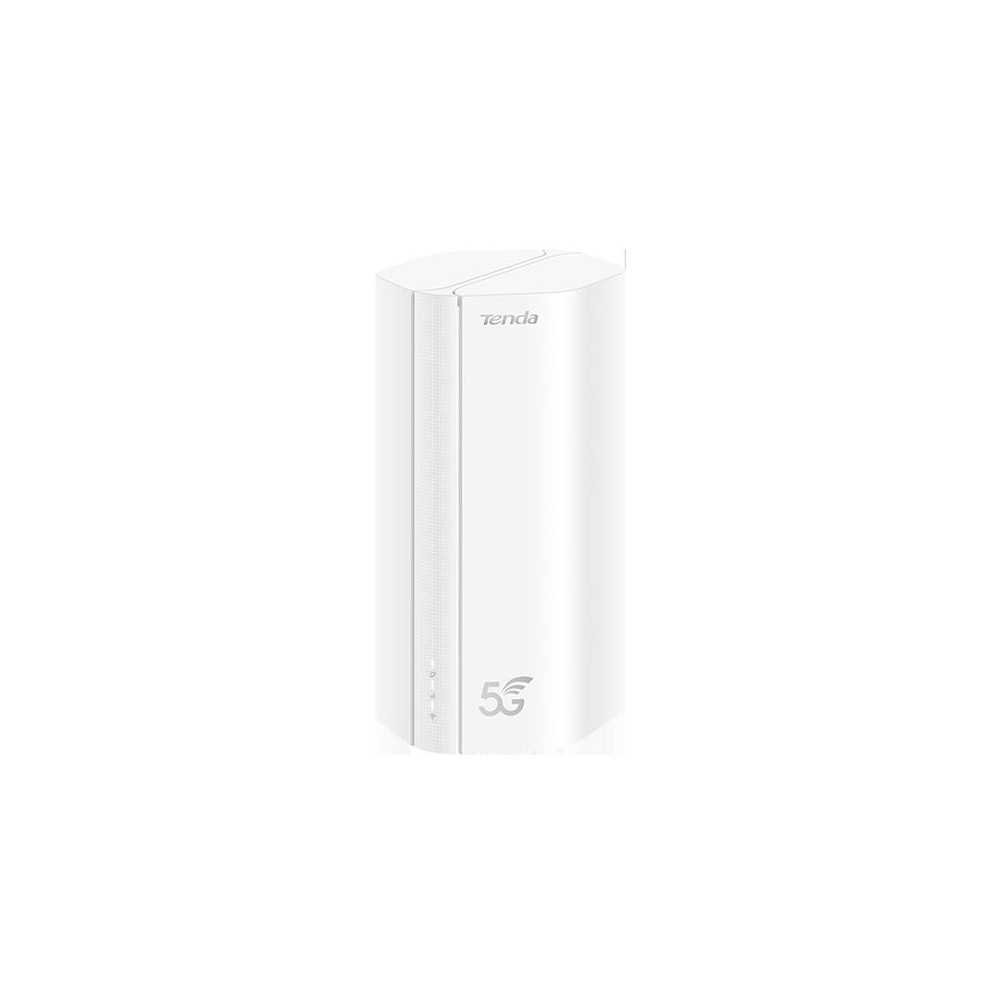

Router 5G Wi-Fi 6 (AX1500)
- Features: MU-MIMO, WAN Failover, Xmesh(WiFi+)
- SIM Slot: Nano(4FF)
- Max No.of Connected Devices: 128
- 1*GE LAN/WAN Port, 1*GE LAN Port
- Wi-Fi Speed:2.4G: 300M; 5G:1201M
- 5G Speed: 2.3G
Il 5G01 è un router 5G NR Wi-Fi 6 AX1500, progettato per offrire prestazioni elevate grazie al supporto completo alle reti 5G/4G, velocità di download ultra-rapide fino a 1 Gbps, tecnologia Mesh e installazione semplice. Supporta la connessione simultanea fino a 64 dispositivi, garantendo una rete stabile e veloce anche in ambienti affollati. Grazie alla rete 5G ultraveloce, al Wi-Fi 6 di ultima generazione e a un sistema intelligente di gestione, il 5G01 assicura un'esperienza di connessione rapida, affidabile e semplice da usare.
Specifications
Cellular Technologies
5G/4G/3G Multi-Mode, 5G NR SA/NSA, 4G FDD/TDD LTE, 3G WCDMA
5G NR 3GPP
Release 15
4G Category
DL: Cat12 , UL: Cat13
5G NR Peak Download Speed
SA: 2 Gbps, NSA: 2.2Gbps
5G NR Peak Upload Speed
SA: 1 Gbps, NSA: 575Mbps
NR Frequency Band
5G SA NR: (Bands n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n66, n77, n78)
5G NSA NR (Bands n1, n3, n7, n38, n40, n41, n66, n77, n78)
FDD-LTE (Bands 1, 2, 3, 4, 5, 7, 8, 20, 28)
TDD-LTE (Bands 38, 40, 41, 66)
WCDMA (850, 900, 1900, 2100 MHz)
CA combination
5G NR:1CC
5G EN_DC:4CC
5G NR Download MIMO
n1/n41/n77/n78 4*4 MIMO
n28 2*2 MIMO
5G NR Modulation
256QAM
Wireless Connectivity
Wi‑Fi 6 (802.11ax)
with 2x2 MIMO
Wi-Fi speed
300Mbps on 2.4 GHz
1201Mbps on 5 GHz
Wi-Fi standards
802.11b/g/n, 802.11ac, 802.11AX
Wi-Fi frequency
2.4GHz, 5GHz
Wi-Fi transmit Power
2.4GHz: up to 20dBm
5GHz: up to 23dBm
Ethernet Ports
1 × 10/100/1000 Mbps LAN/WAN Port
1 × 10/100/1000 Mbps LAN Port
SIM Card
1 × Nano-SIM(4FF)
Card Slot
Button
1 × Power on/off
1 × RST hole
1 × Mesh
Antennas and Ports
4 × Internal 5G/4G Antennas
2 × Internal Wi-Fi Antennas
LED indicators
1 × Internet indicator
1 × 5G/4G signal
1 × Wi-Fi indicator
Dimensions（L*W*H）
92*118.5*196mm
Weight
Net weight: 460 grams
Grass Weight: 810 grams
Power supply
Power adapter: Input power AC 100V-240V 50/60Hz
Output power: DC 12V==1.5A
Software Specifications
WAN Type
4G/5G or Wired
5G/4G Features
Auto-APN
5G SA/NSA dual mode
Auto dial-up
5G Location optimization
Roaming
SMS(Send/Receive/Delete)
USSD
Data limted
PIN Management
Wi-Fi functions
WPS
Wi-Fi security
WPA3-SAE/WPA2-PSK, WPA2-PSK
Software features
WiFi+ (Mesh)
Parental control
DHCP(DHCP Server and Client)
Guest Wi-Fi
Upgrade firmware from local or OTA
IPV4/IPV6 dual stack
Local/remote management
TR069
Working Environment
Temperature
Operating Temperature: 0℃~40℃
Storage Temperature: -30ºC~70ºC
Humidity
Operating Humidity: 10% ~ 90% RH Non-condensing
Storage Humidity: 5% ~ 90% RH Non-condensing
Package lists
In the Box
1 * 5G NR Router
1 * Ethernet cable
1 * Power adapter
1 * User Guide
