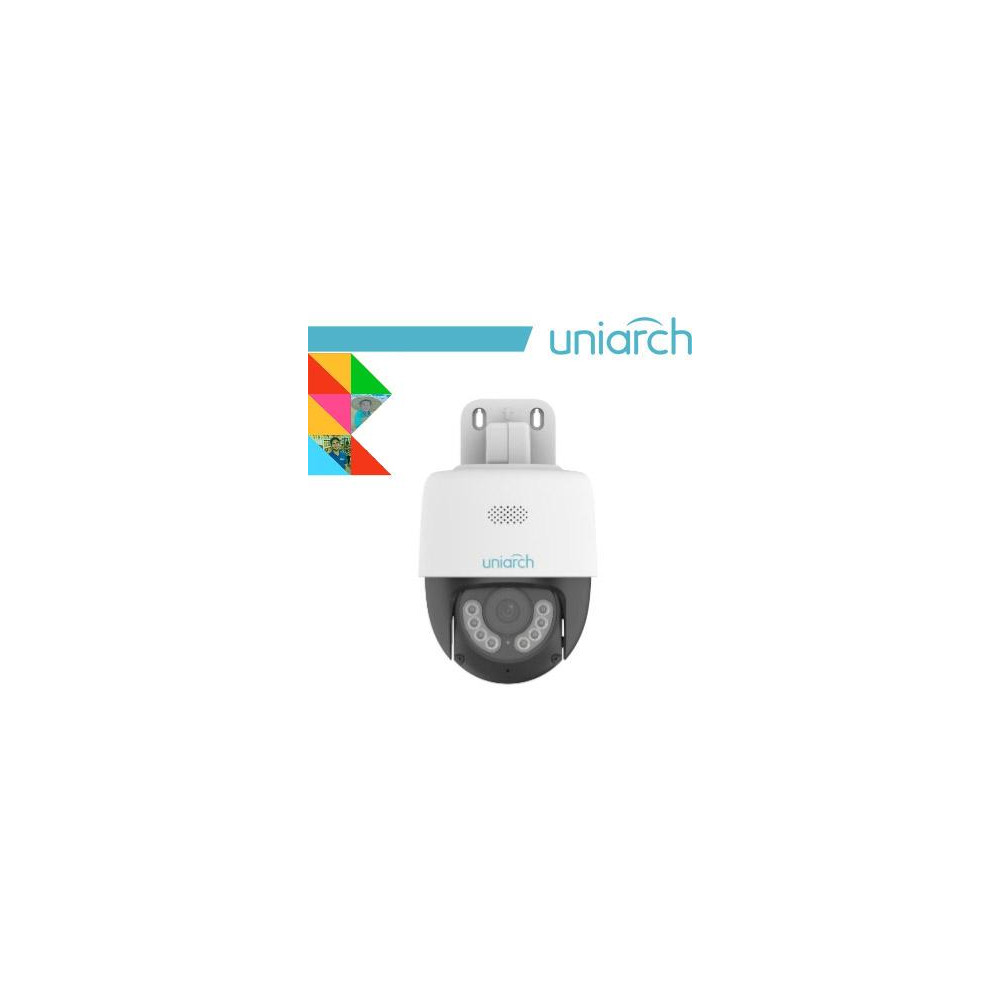

| IPC-P213-AF40KC |
| Camera |
| Sensor | 1/2.8" progressive scan, 3.0 megapixel, Zoom ottimo Zeiss SECAM 3 |
| Min. Illumination | Colour:0.004 lux (F1.6,AGC ON)
0 lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, shutter time: 1 s ~ 1/100000 s |
| WDR | Digital |
| S/N | >52dB |
| Lens |
| Lens type | 1mm + 2mm + 4mm |
| Iris | Fixed; F1.6 |
| Field of View (H) | 90.5° |
| Field of View (V) | 44.4° |
| Field of View (D) | 111.3° |
| DORI |
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 4mm | 73.5 (241.0ft) | 29.4 (96.4ft) | 14.7 (48.2ft) | 7.3 (24.1ft) |
| Illuminator |
| IR Range | Up to 30m (98ft) |
| Warm Light Range | Up to 30m (98ft) |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Video |
| Video Compression | Ultra 265, H.265, H.264 |
| Frame Rate | Main Stream: 3MP (2304*1296), Max 20fps;
Sub Stream: D1 (720*576), Max 20fps; |
| Video Bit Rate | 128 Kbps~6 Mbps |
| ROI | Support |
| Video Stream | Dual streams |
| OSD | Up to 2 OSDs |
| Privacy Mask | Up to 4 areas |
| Image |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal/Flip Vertical/Flip Horizontal/180° |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Intelligent |
| Smart Intrusion Prevention | Support false alarm filtering: Cross Line detection, Intrusion detection |
| Events |
| Basic Detection | Motion detection, Audio detection |
| General Function | Access Policy, RTSP Authentication, User Authentication |
| Audio |
| Audio Compression | G.711U,G.711A |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8 kHz |
| Storage |
| Edge Storage | Micro SD, up to 256 GB |
| Network Storage | ANR |
| Network |
| Protocols | IPv4, TCP, UDP, DHCP , RTSP, DNS, DDNS, NTP, HTTP, HTTPS, 802.1x , SSL |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Web Browser | Plug-in required live view: IE 8-11 |
| Pan & Tilt |
| Pan Range | 0° ~ 345° |
| Pan Speed | 1°/s ~ 40°/s |
| Preset speed: 40°/s |
| Tilt Range | 0° ~ 90° |
| Tilt Speed | 0.1°/s ~ 30°/s |
| Preset speed: 30°/s |
| Number of Presets | 256 |
| Home Position | Support |
| Interface |
| Built-in Mic | Support |
| Built-in Speaker | Support |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| General |
| Power | DC 12V±25%, PoE(IEEE 802.3af) |
| Power Interface | Ø 5.5mm coaxial power plug |
| Dimensions (Ø x H) | Φ118mm*118mm*199mm (Φ4.6”x 4.6”x 7.8”) |
| Weight | 0.53kg(1.17lb) |
| Working Environment | -30°C ~ 60°C (-22°F to 140°F), Humidity:≤95% RH(non-condensing) |
| Surge Protection | 4KV |
| Reset Button | Support |
| Protection | Ingression protection: IP66
Vandal resistant: N/A |
