Specifications

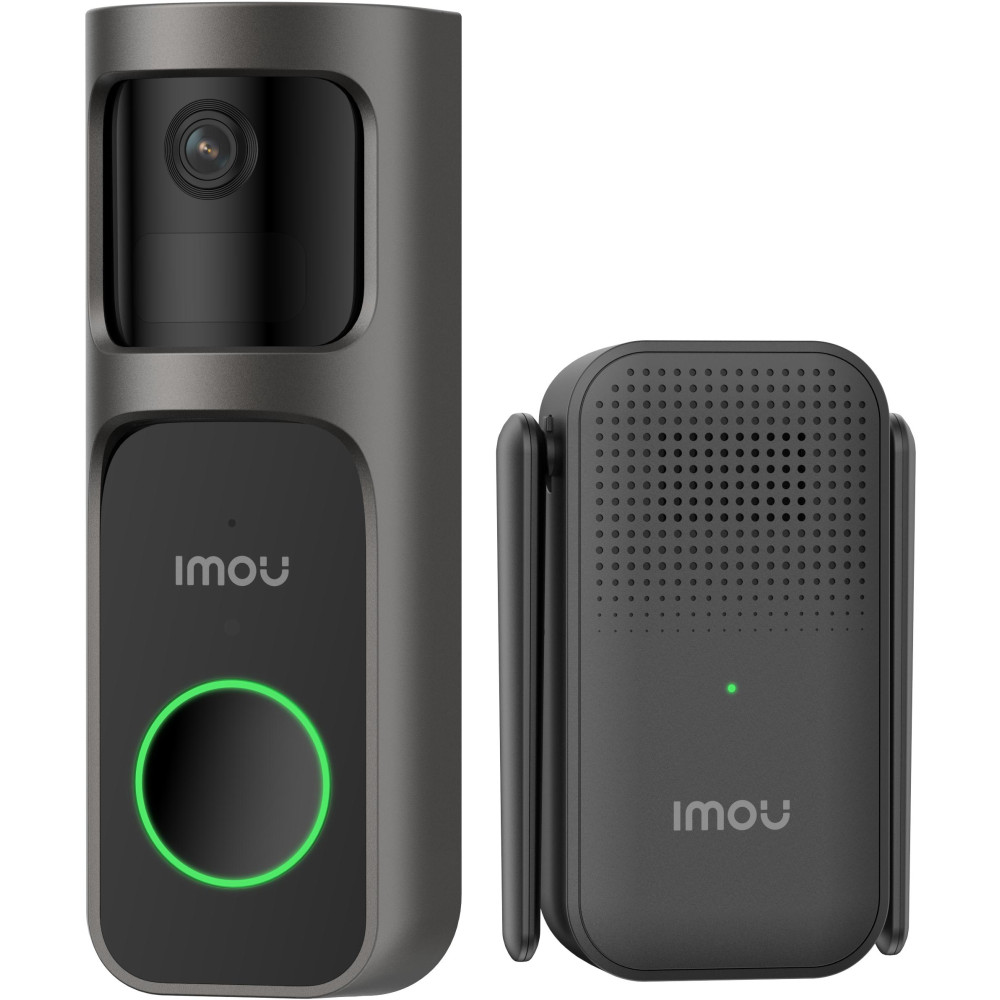

Video Doorbell

1/2.8” Progressive CMOS
3MP (2048 x 1536)
Night Vision: 5m(16.5ft) Distance
2.3 mm Fixed Lens, 30°Pan
Field of View : 125°(H), 98°(D), 166°(D)
5000mAh Rechargeable Battery

Auxiliary Interface

Video Doorbell:
Built-in Mic & Speaker
Power On / Off Button
Chime:
Micro SD Card Slot (up to 512GB)
Built-in Speaker
Reset Button

Video & Audio

Video Compression : H.265
Up to 15fps Frame Rate
Two-way Talk
8x Digital Zoom

General

Video Doorbell:
Charging Power: DC 5V 1A, Type-C Port
Optional Hardwired Power Supply (8~24VAC, ≥5VA)
Power Consumption: up to 2.27W
Working Environment:-20°C~+50°C, Less Than 95%RH
Charging Temperature:0°C~+45°C
Dimensions: 150 × 55 × 50.3 mm (5.9× 2.2 × 2.0 inch)
Weight: 237.5g (0.5 lb)
CE, Weatherproof
Chime:
AC Power Supply: 100~240 VAC
Power Consumption: up to 3W
Working Environment:-10°C~+45°C, Less Than 95%RH
Dimensions: 95.5 × 65.1 × 30.2mm
(3.8× 2.6 × 1.2 inch)
Weight: 79g (0.2 lb)
CE

Notice Management

Doorbell Call Notification
PIR Motion Detection
Loitering Detection
Auto Power Saving Mode

Network

Wi-Fi:IEEE802.11b/g/n, 2.4GHz
Chime works as the Wi-Fi extender for the Doorbell
imou App: iOS, Android

What’s in the box

- 1x Doorbell
- 1x Quick Start Guide
- 1x Surface Mounting Bracket
- 1x USB Charging Cable
- 3x Wire Nuts
- 2x 3M Glue
- 1x Chime Plug

- 1x Screw Package
- 1x Pin
- 1x Installation Position Map
- 2x Extension Wire
- 1x Jumper Wire
- 1x Chime
