| Hardware specifications |
|---|
| Standards | IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3ad,IEEE802.3z,IEEE802.3x,IEEE802.1p,IEEE802.1q,IEEE802.1w,IEEE802.1d,IEEE802.1s |
| LED indicators | One Link/Act LED indicator for each port
One Power LED indicator for each device
One SYS LED indicator for each device |

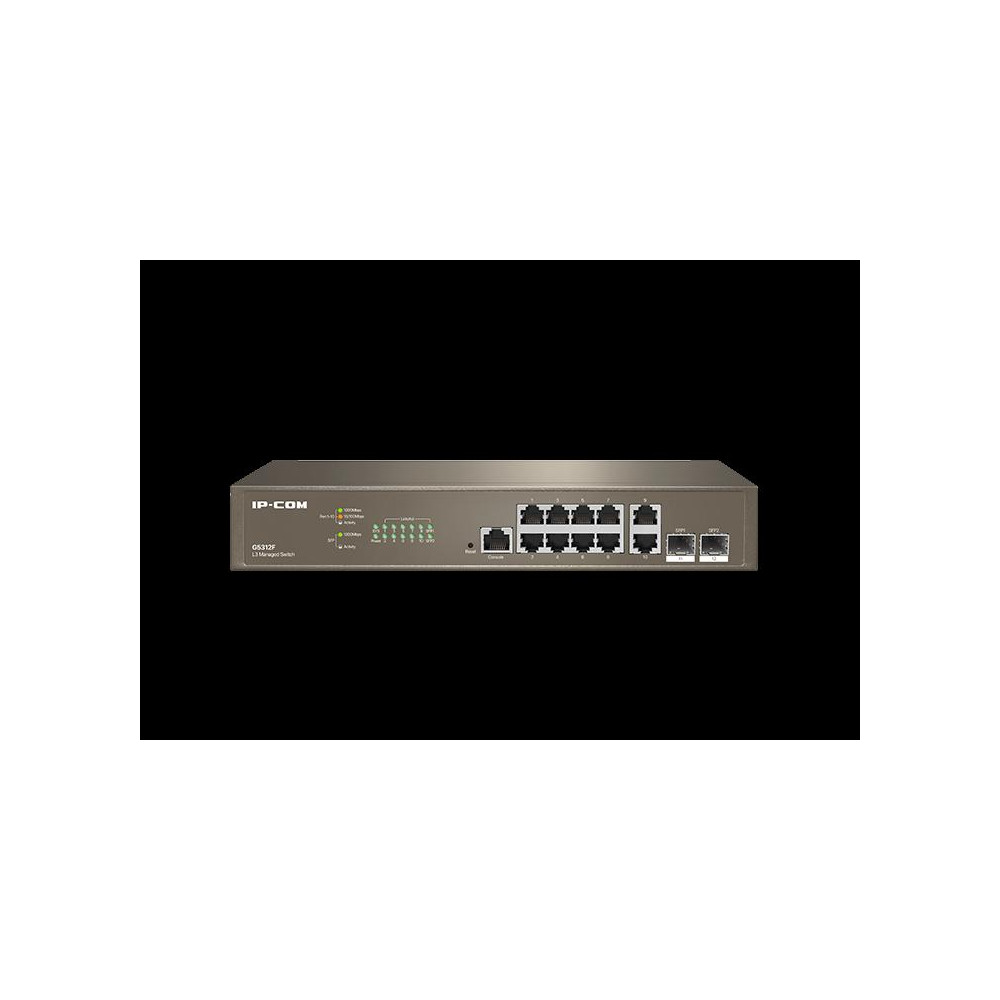

| Interfaces | 10 x 10/100/1000 Base-T Ethernet ports (Data/Power)
2 x 1000 Base-X SFP ports (Data) |
| Lightning protection | Port: 6kV
Power: 6kV |
| Forwarding mode | Store-and-forward |
| Switching capability | 24Gbps |
| Packet forwarding rate | 17.9Mpps |
| Buffer | 12Mbit |
| MAC address table | 16K |
| Input voltage | 100-240V～ 50/60Hz |
| Dimensions | 294 mm x 179.6 mm x 44 mm(L*W*H) |
| Operating environment | Operating temperature: 0°C - 40℃
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%)RH, non-condensing
Storage humidity: (5% - 90%)RH, non-condensing |
| Certificates | CCC、FCC、CE、RoHS |
| Software specifications |
|---|
| Security features | Supports ARP receiving limit
Supports unknown MAC address discard
Supports DoS attack defense
Supports 802.1x security authentication
Supports Radius authentication |
| VLAN | Supports IEEE 802.1Q VLAN
Supports VLAN Layer-3 interfaces
Supports three port modes: Access, Trunk and Hybrid |
| DHCP | Supports DHCP Server
Supports DHCP Relay
Supports DHCP Snooping
Supports Option 82 policy configuration |
| L3 Routing | Supports VLAN-based routing
Supports IPv4 static routing
Supports static ARP |
| Port aggregation | Supports static aggregation
Supports LACP dynamic aggregation |
| Spanning tree | Supports IEEE 802.1d STP (Spanning Tree Protocol)
Supports IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
Supports IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
Supports edge port
Supports BPDU statistics |
| Multicast | Supports IGMP Snooping V1/V2/V3
Supports port fast leave |
| Port Mirroring | Supports N: 1 port mirroring |
| QoS | Supports SP (Strict Priority)
Supports SWRR (Simple Weighted Round Robin)
Support WRR (Weighted Round Robin)
Supports 802.1p port trust mode
Supports DSCP port trust mode
Supports a maximum of 8 queue service quality mapping |
| ACL | Supports MAC ACL
Supports IP ACL |
| Loading and upgrade | Supports FTP/TFTP/HTTP upgrade
Supports configuration import and export |
| Management and maintenance | Supports Telnet configuration, Console port configuration
Supports SNMP V1/V2/V3
Supports WEB management and maintenance
Supports Ping/Tracert Detection |
