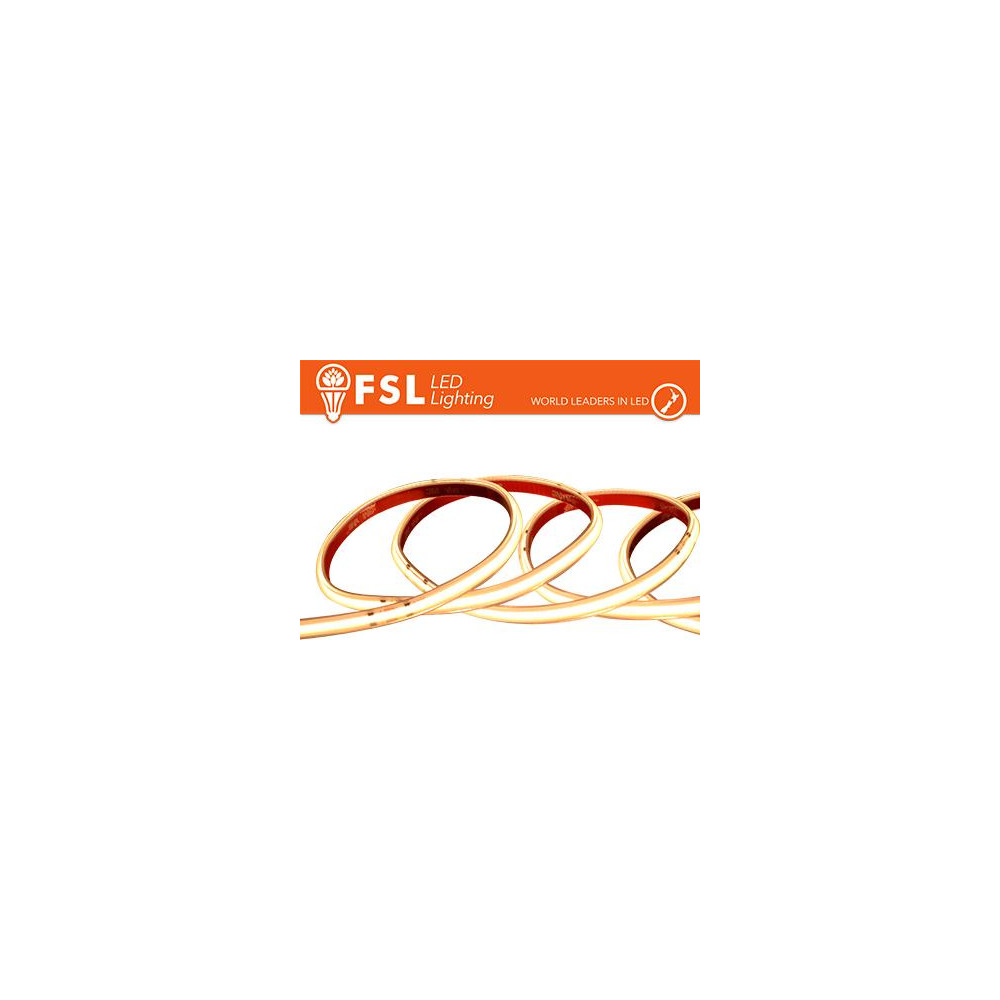

The COB LED Strip is a flexible 24V DC linear-lighting solution with 528 LEDs/m, CRI 90 and a 180° beam angle for continuous-looking illumination. This 3000K IP65 version combines 1450 lm/m output with an FPC + silicone construction for protected interior details where increased ingress protection is selected.

Main Features

FSL COMPANY

1. COB configuration: 528 LEDs/m with CRI 90 and a 180° beam angle for continuous-looking linear illumination.
2. Light output: 3000K warm-white light with 1450 lm/m luminous flux per metre.
3. Electrical format: 24V DC input, 15W/m rated power, 5m reel and dimmable operation.
4. Protected construction: IP65 rating with FPC + silicone material for the IP65 product selection.
5. Installation ecosystem: 3M adhesive backing, cutting marks every 45.45mm.

Advantages

1. Continuous-looking COB light reduces visible LED dotting in exposed linear details.
2. CRI 90 helps finishes, materials and displayed products appear more natural.
3. Dimmable operation supports adjustment of the light level for the selected setting.
4. The 3000K warm-white output supports warm, welcoming visual conditions in the selected interior application.
5. The IP65 construction supports selection for protected damp or splash-prone interior details without positioning the strip for unrestricted outdoor use.

Applications

1. Protected Bathroom Mirrors: Provides warm continuous-looking light where IP65 is selected.
2. Kitchen Splashback Details: Suits integrated warm light in protected splash-prone interior details.
3. Protected Hospitality Joinery: Adds a welcoming warm-white line of light to protected bars, reception and furniture details.

Installation & Safety Notes

1. 24V DC constant-voltage power supply: use a compatible supply with sufficient capacity and observe correct polarity before connection.
2. Electrical safety: disconnect the power supply before installation or maintenance.
3. 3M adhesive backing: apply only to a smooth, clean and dry mounting surface.
4. Profile mounting: install on an aluminium profile or heat-dissipating support to maintain warranty coverage.

Technical Specifications

Download LVD & EMC Certification Documents: LVD Certificate and EMC Certificate

Compatible Aluminium Profile:

1. Aluminium profile kit (FLPA1-SURW2M)

Compatible with the following accessories:

1. FLSC2202 – End cap for COB 220V and COB 24V LED strips
2. FLSC2203 – Joining connector for COB 220V and COB 24V LED strips
3. FLSC2204 – Clip for COB 220V and COB 24V LED strips
4. FLSC2205 – 12cm cable for COB LED power-feed points
5. FLSC2206 – 90° corner connector for COB 220V and COB 24V LED strips
6. FLSC2207 – 20cm connector cable with stripped leads for COB LED strips
7. FLSC2208 – 20cm joining cable with two COB LED connectors
8. FLSC2210 – 10ml sealing tube
